We provide a versatile range of truck-mounted concrete boom pumps to suit projects of all sizes from single storey residential residences, multi-storey apartments and large-scale commercial warehouses.
Current fleet includes:
32m Callaghan
47m Putzmeister
56m Putzmeister
All of our machinery are registered with WorkSafe WA and undergoes regular inspections and maintenance to ensure Safety, Durability, and Reliability—for both your project and our personnel.
The Pump Trucks are operated by experienced and fully qualified operators and hose hands. We are proud to also offer additional hose hands for specific jobs as required to meet client requirements.
Our Fleet
32m Callaghan Concrete Pumps
Model: CCP32RZ5170 Concrete Pump
Boom Specifications
Vertical reach: 31.6m
Horizontal reach: 27.7m
Reach from front of truck: 25.4m
Unfolding height: 5.8m
Section articulation: 90’/180’/240’/220’/220’
Rotation: 370’
Delivery Line: 125mm
Proportional boom: Yes
Maximum end hose length: 125mm x 3m
Outrigger spread-front: 6.16m
Outrigger spread-rear: 7.15m
Max outrigger weight: 20,500kg
47 Putzmeister Boom Pump
Model: BSF 47-5.16H Boom Pump
Boom Specifications
Vertical reach: 46.1m
Horizontal reach: 42.1m
Unfolding height: 9.5m
Reach Depth: 39.7m
Outrigger Ground Pressures - front: 27T
Outrigger Ground Pressures - rear: 26.5T

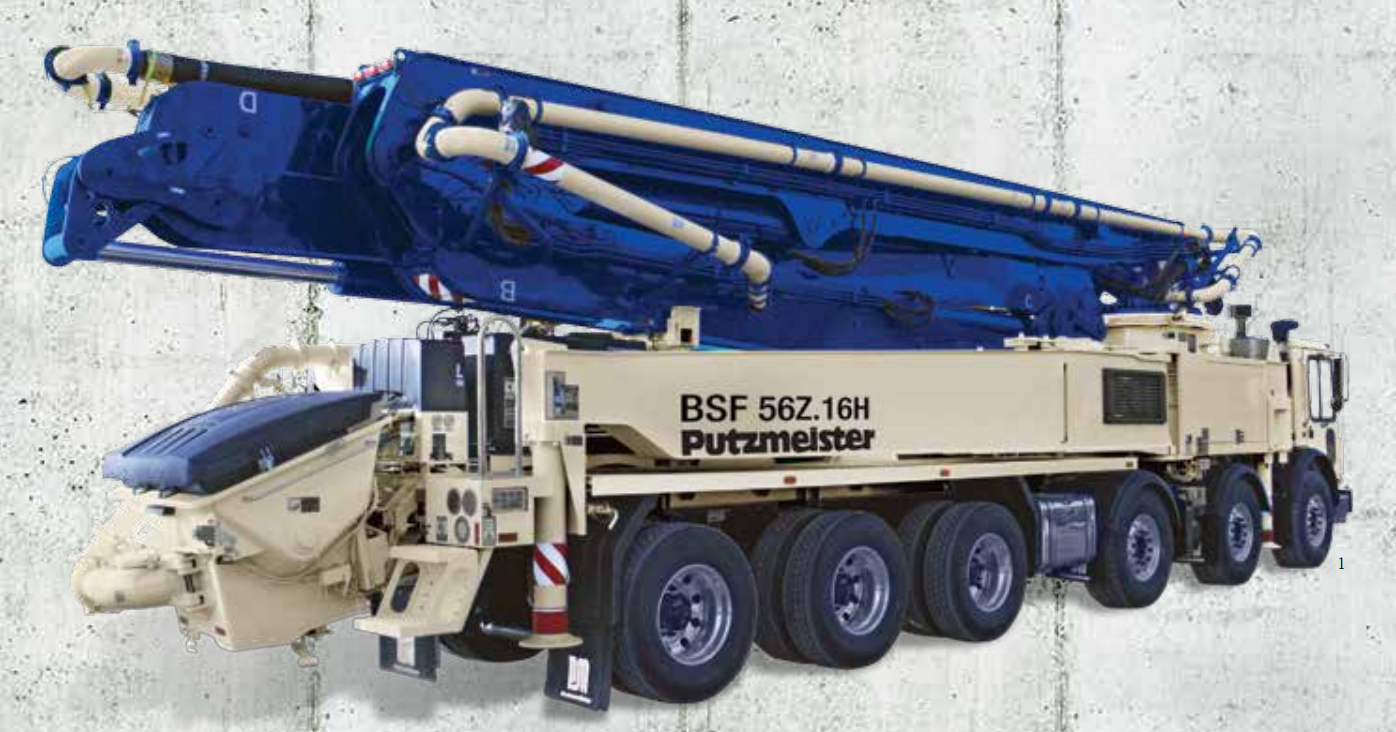

56m Putzmeister
Model: 56m Putzmeister
Boom Specifications
Vertical reach: 55.10m
Horizontal reach: 49.90m
Reach from front of truck: 45.60m
Unfolding height: 12.20m
Section articulation: 90’/180’/180’/245’/210’
Rotation: 365’
